The Champanelle

Lincoln Block Model

Beta model viewer and model package. Verify dimensions, drawings, quantities, pricing, engineering, and local code requirements before building. See the System Plan Notice for more information.

Preliminary design guidance

Lincoln Block System Plan Notice

The Lincoln Block Generator creates a Lincoln Block system plan, not a house blueprint or an engineered construction document.

A system plan is a preliminary mock layout showing what a building plan using the Lincoln Block system might look like if it were later drawn by a qualified designer and reviewed, engineered, and stamped by licensed professionals.

These published models help customers review preliminary layouts, compare design ideas, and communicate what they want before investing in professional drafting, architectural services, structural engineering, permitting, or stamped plans. Do not use this system plan for construction. Dimensions, loads, connections, foundations, code compliance, and site-specific requirements must be verified and documented by the appropriate licensed professionals.

The Champanelle

The Champanelle is a 1,120 sq ft Lincoln Block house concept with 136 ft of exterior wall, 47 block courses, 856 Lincoln Blocks, a 6/12 gable roof, openings for 2 doors and 7 windows.

Loading model scene…
3D View Controls
Background Color

House Statistics

Full Takeoff Summary

Generated model takeoff organized into expandable sections for quick review on desktop and mobile.

Takeoff HighlightsKey totals from the generated model
Footprint Area1,120 sq ft
Perimeter136 ft
Courses1-47
Wall Segments4
Generated Blocks870
Takeoff Blocks856
Total Block Length4,103.33 LF
Openings2 door / 7 windows
Brad Nails18,832
Roof Area1,574.2 sq ft
Foundation136 LF stem wall
Floor Joists30
Wall LayoutFootprint, wall runs, openings, and block length
WallTypeRunLengthOpeningsBlocksBlock LF
Wall 1PlateE40 ft32141,002.58 LF
Wall 2GableN28 ft12151,053.58 LF
Wall 3PlateW40 ft32181,008.08 LF
Wall 4GableS28 ft22091,039.08 LF
Material ScheduleFull model-level material quantities
MaterialQuantity
Blocks Counted856 count
Blocks With Glue856 count
Glue Profiles1,772 count
Top Cap Blocks15 count
Top Cap Glue60 count
Blocks With Z Metal10 count
Z Metal10 count
Blocks With Gaskets10 count
Gaskets30 count
Exterior Gaskets10 count
Stem Gaskets10 count
Interior Gaskets10 count
Regular Stems2,386 count
Plate Stems30 count
Joint Stems561 count
Corner Stems8 count
Corner Stem Height91.83 LF
Wall-End Stems0 count
Wall-End Stem Height0 LF
Bolt Hardware30 count
Total Block Length4,103.33 LF
Brad Nail ScheduleFastener quantities by use group
Fastener GroupQuantity
Block Brad Nails9,664
Regular Stem Brad Nails9,544
Plate Stem Brad Nails120
Joint Stem Brad Nails4,488
Course Fastening Brad Nails4,680
Total Brad Nails18,832
Wall-By-Wall TotalsPer-wall material and fastener quantities
WallBlocksGlueTop CapZ MetalGasketsRegular StemsPlate StemsJoint StemsBoltsBrad NailsBlock LF
Wall 1214460839584913594,6041,002.58 LF
Wall 2215430026612615364,8861,053.58 LF
Wall 3218464739579913894,6021,008.08 LF
Wall 4209418026611613564,7401,039.08 LF
Foundation & Floor SystemStem wall, piers, beams, joists, and floor layers
Foundation / Floor ItemValue
Foundation TypeStem Wall
Floor SystemJoists On Stem Wall And Piers
Floor Level Course3
Stem Wall10 in wide x 24 in high
Stem Wall Runs4 runs / 136 LF
Site Grade12 in exposed / 12 in buried
Sill Plate9.50 in wide / 136 LF
Plate Gasket136 LF
Pier Grid18 piers @ 8 ft
Floor Beams3 beams @ 8 ft
Floor Joists30 joists @ 16 in spacing
Floor Layers2 layers
Roof SystemRoof pitch, area, overhang, stack, and roof planes
Roof ItemValue
Roof ModeGable
ConstructionTrusses
Pitch6/12
Roof Area1,574.2 sq ft
Eave Overhang2 ft
Roof Stack Height8 in
Total Roof Thickness11.13 in
Seat Cut Height0 in
Rafter Depth3.50 in
Generated Roof Components23
Wall 1 Plane787.1 sq ft
Wall 3 Plane787.1 sq ft
OpeningsDoor and window placements used in the takeoff
WallOpeningStartWidthCoursesComponent
Wall 1Regular Door16 ft39 in4-23Lb Door 2
Wall 1Hung Window30.94 ft53 in8-20Lb Window 2
Wall 1Hung Window21.57 ft49 in8-20Lb Window 2
Wall 2Hung Window8.88 ft49 in8-20Lb Window 2
Wall 3Hung Window7.04 ft36 in8-20Lb Window 2
Wall 3Hung Window16.23 ft60 in8-20Lb Window 2
Wall 3Regular Door33.21 ft39 in5-24Lb Door 2
Wall 4Slider Window10.53 ft38 in8-17Lb Window 1
Wall 4Hung Window19.40 ft36 in8-20Lb Window 2
Takeoff OptionsModel features included in this generated takeoff
Generated Takeoff OptionIncluded
Rough Opening StemsYes
Rough Opening GasketYes
Rough Opening PlywoodYes
Top CapYes
Brad NailsYes
Bolt HardwareYes
Joint StemsYes
Regular StemsYes
Plate StemsYes
Corner StemsYes
Wall-End StemsYes
Exterior StileYes
Interior StileYes
GlueYes
GasketsYes
Z MetalYes

Exterior and Interior Views

Photographs

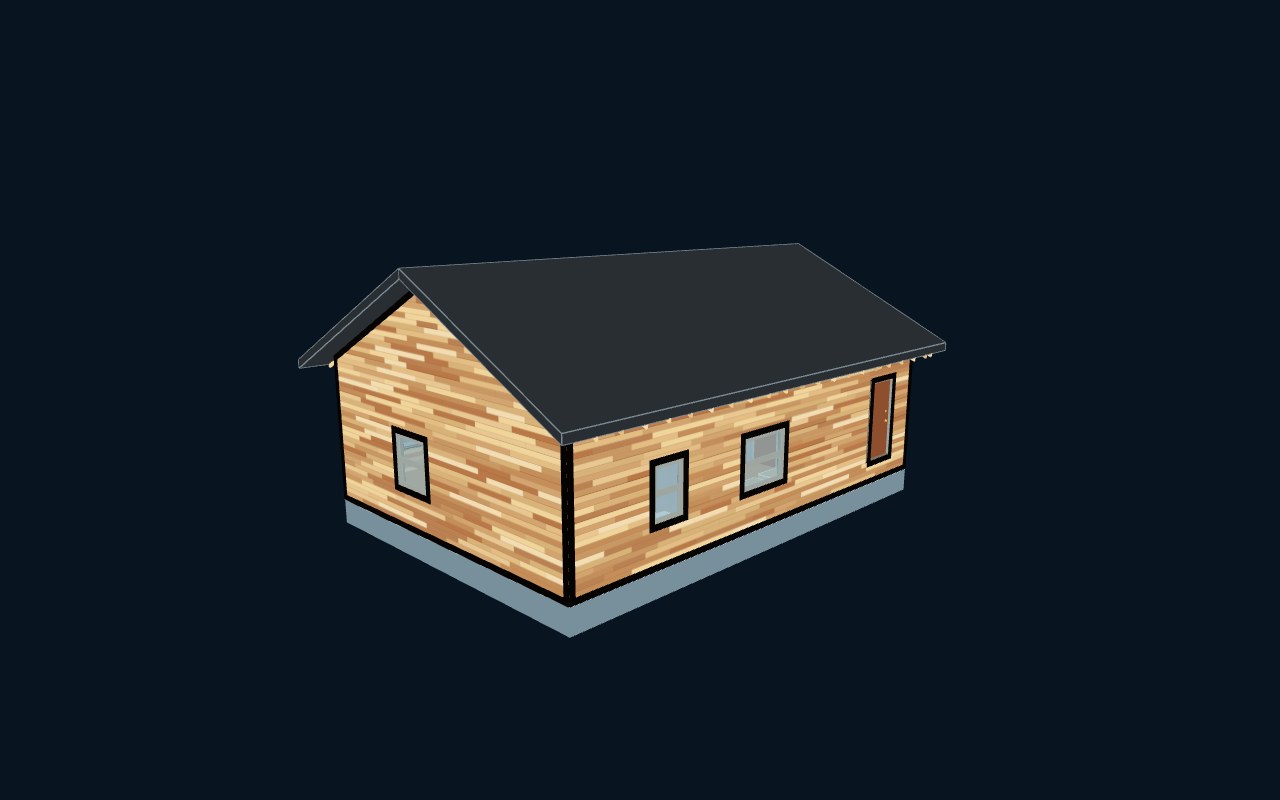

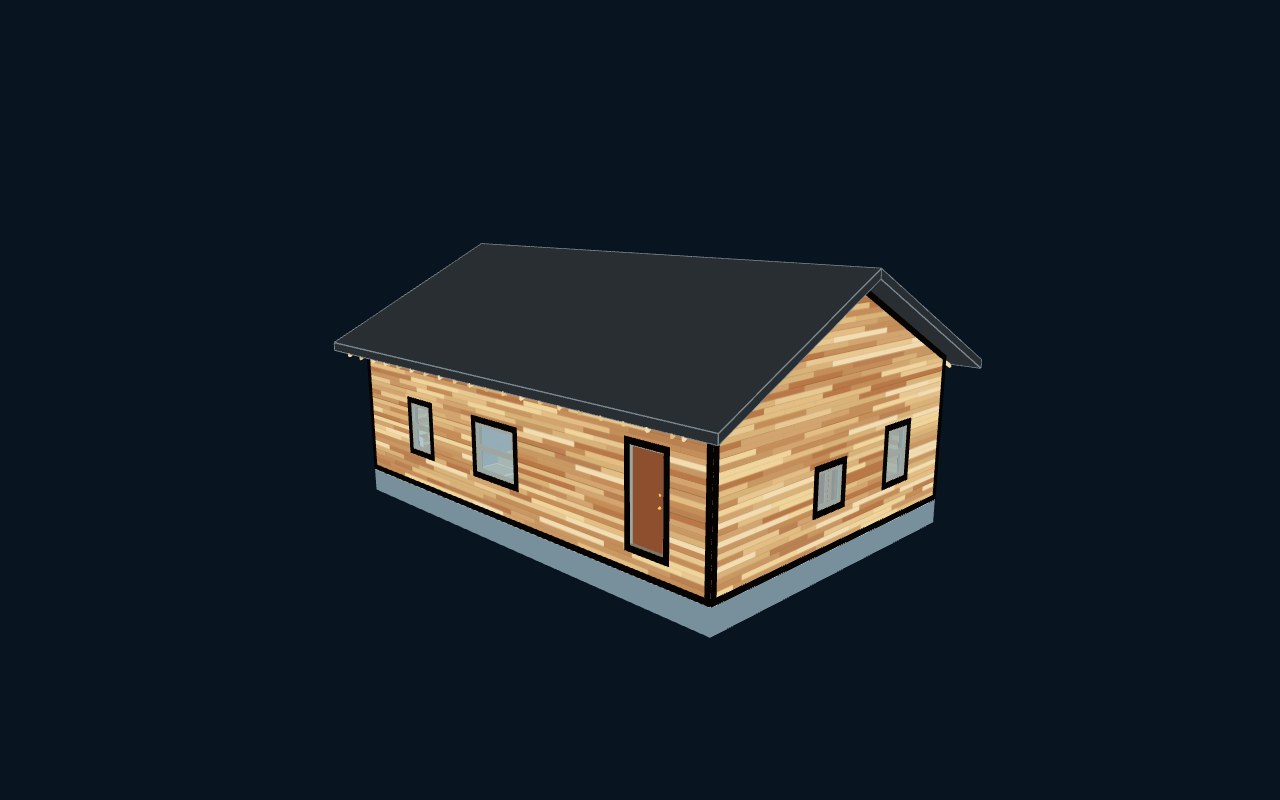

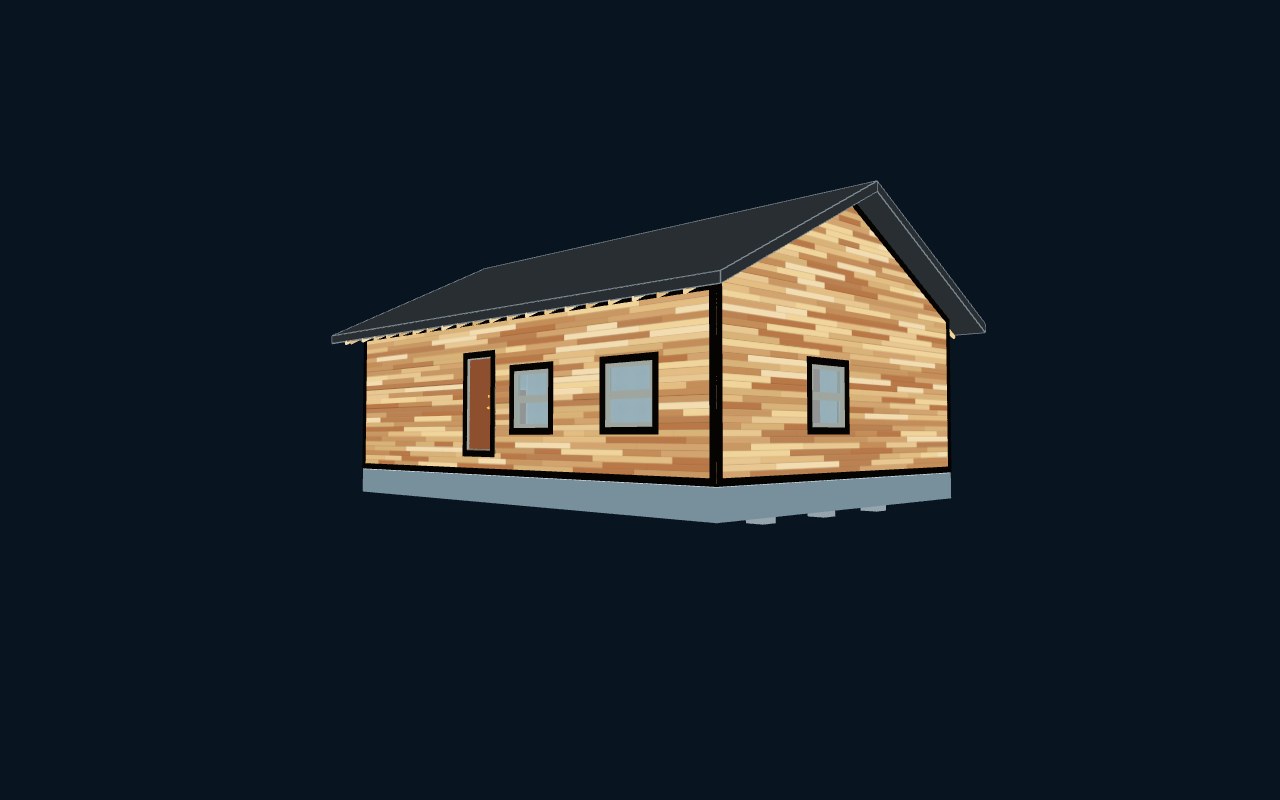

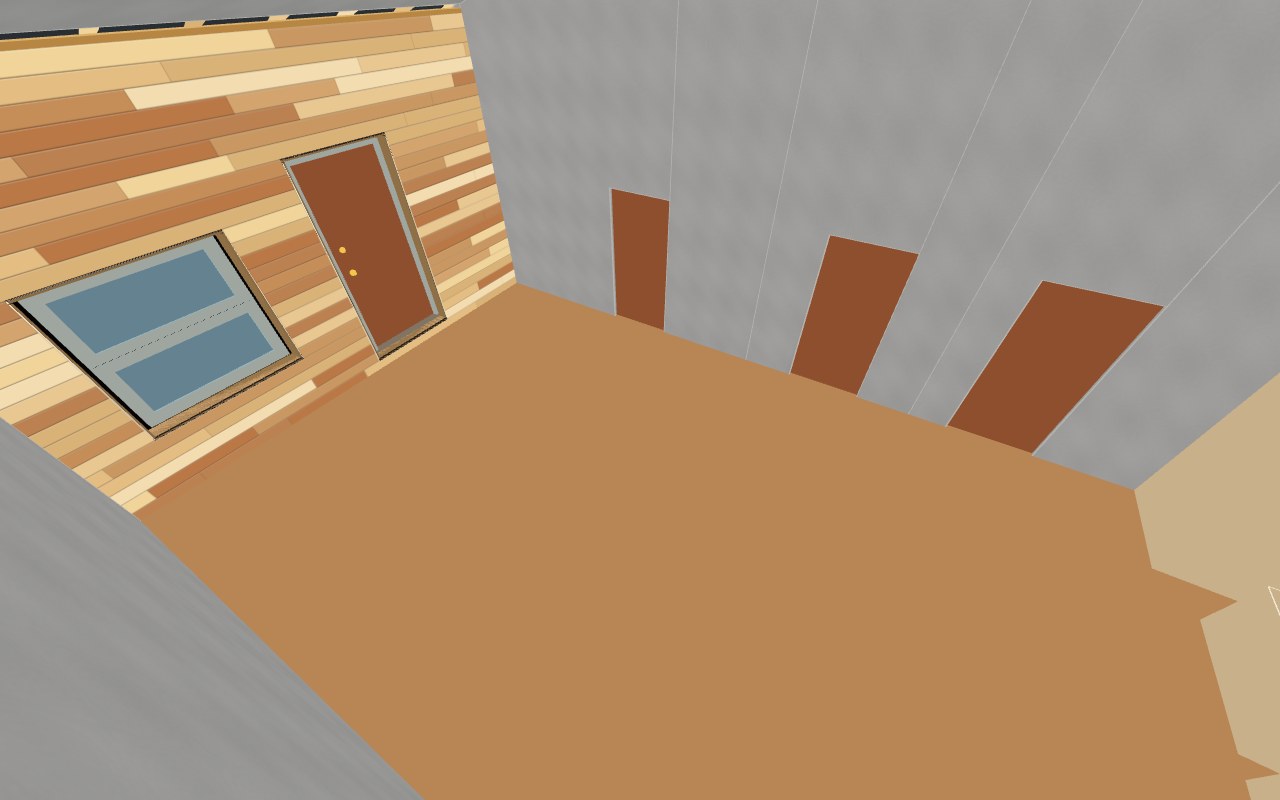

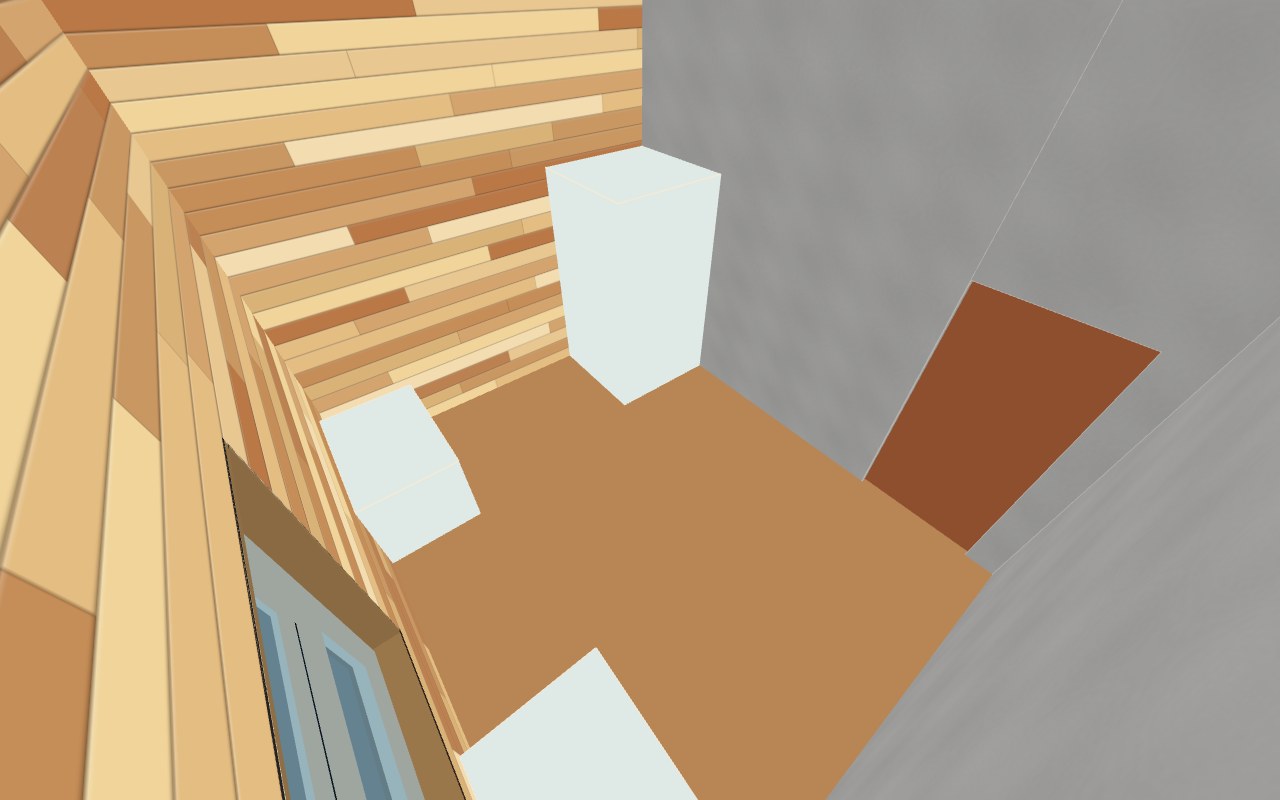

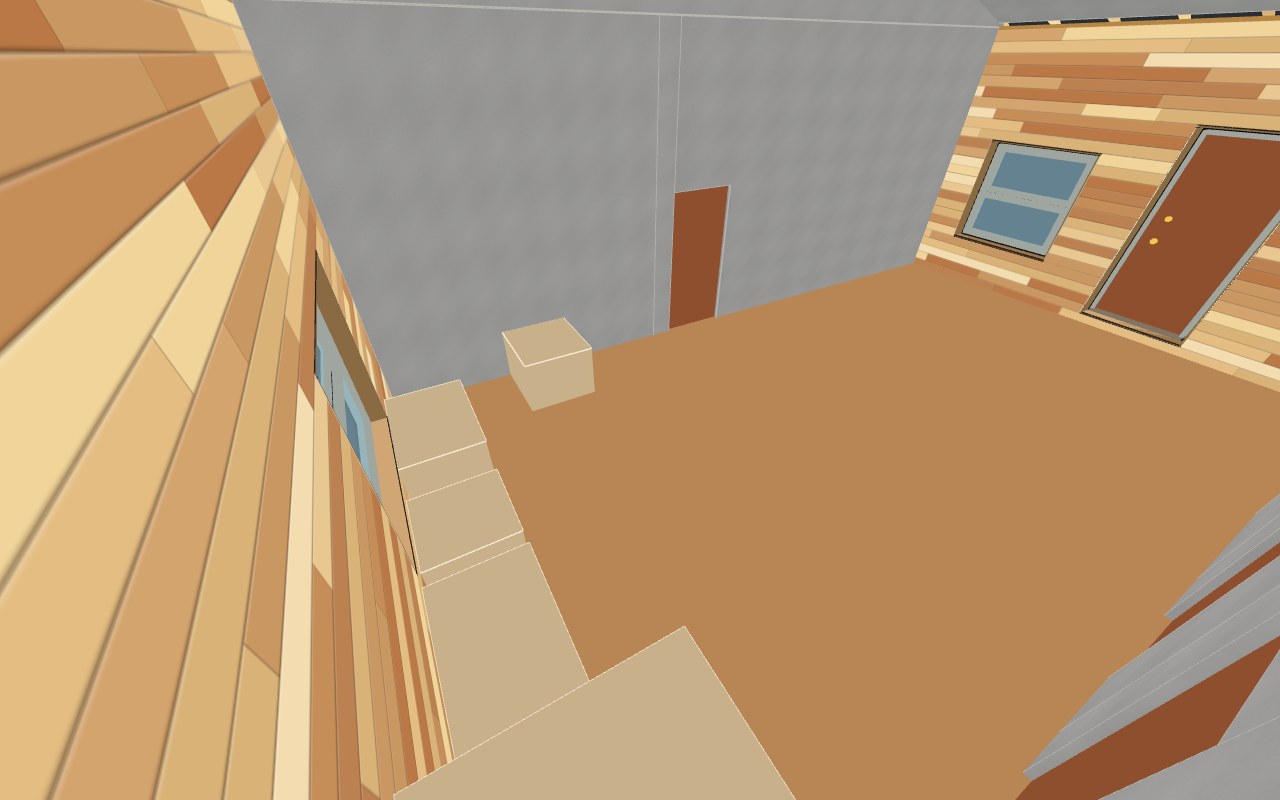

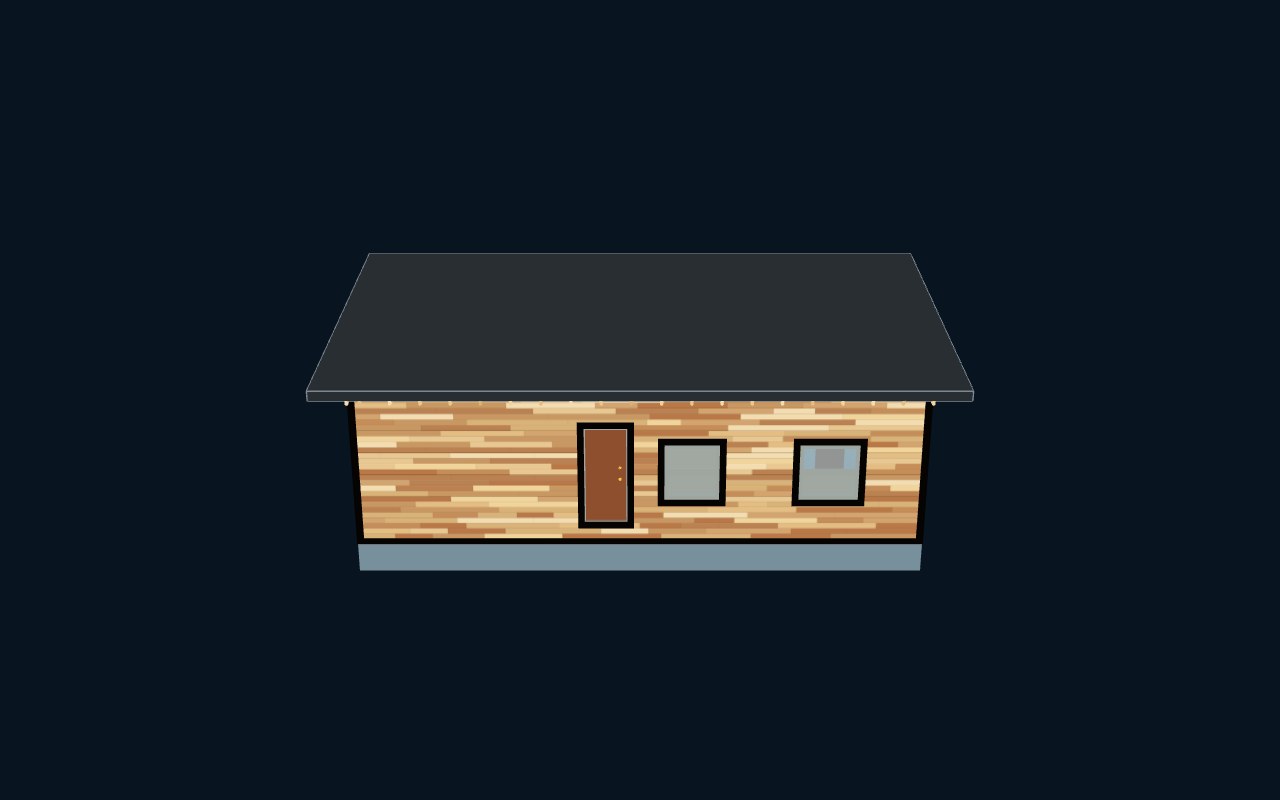

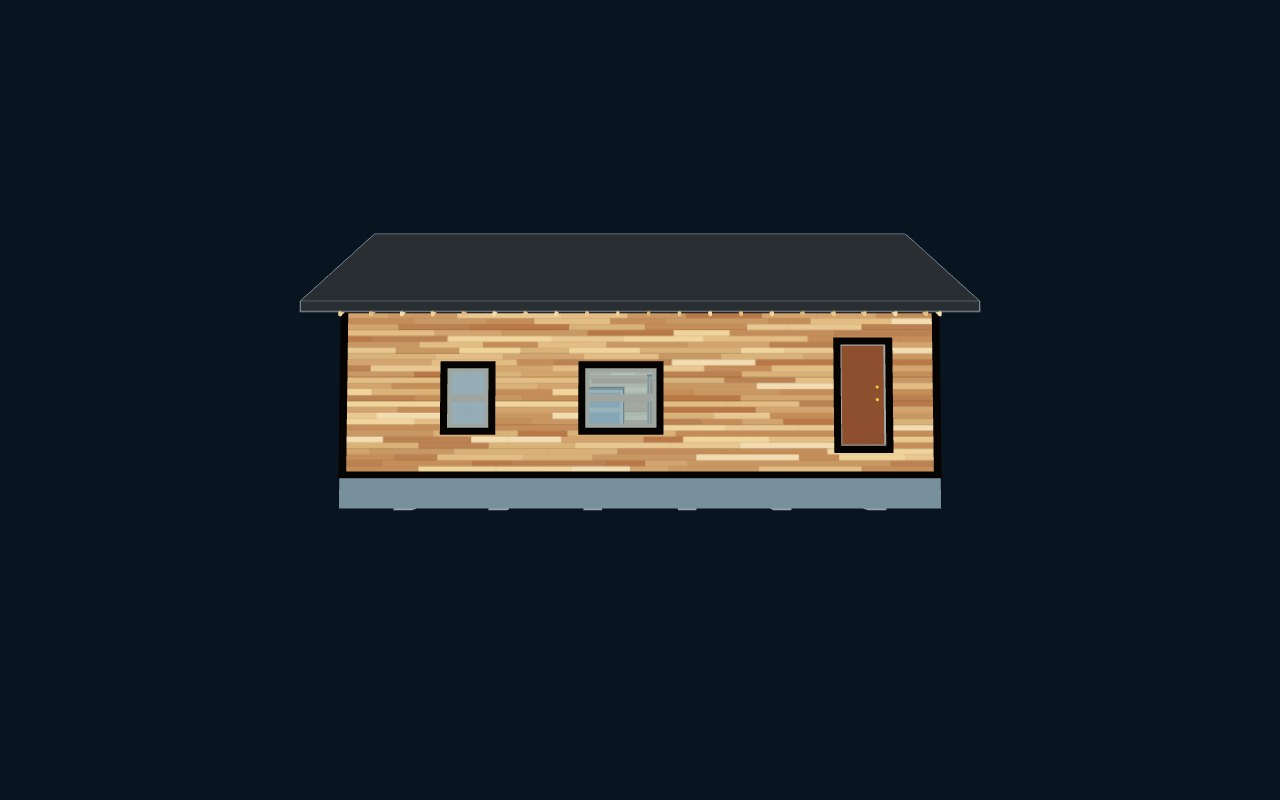

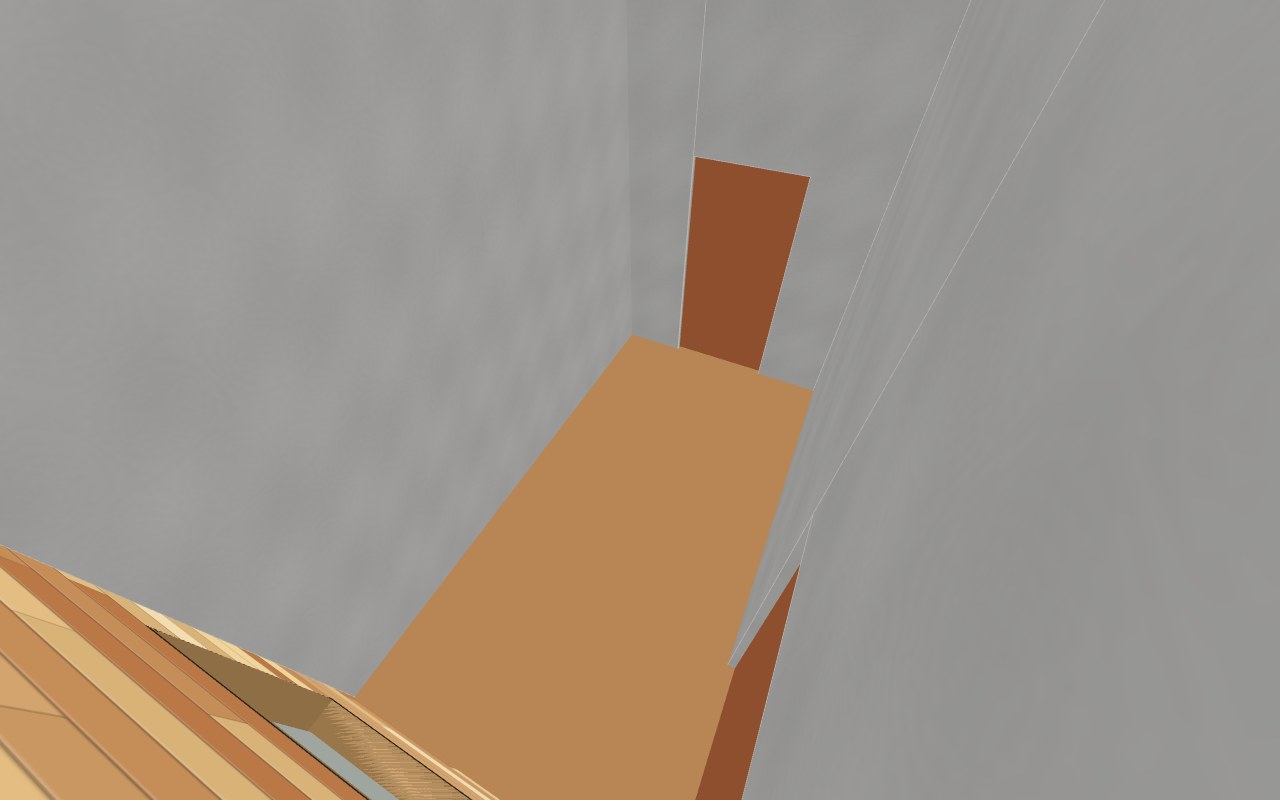

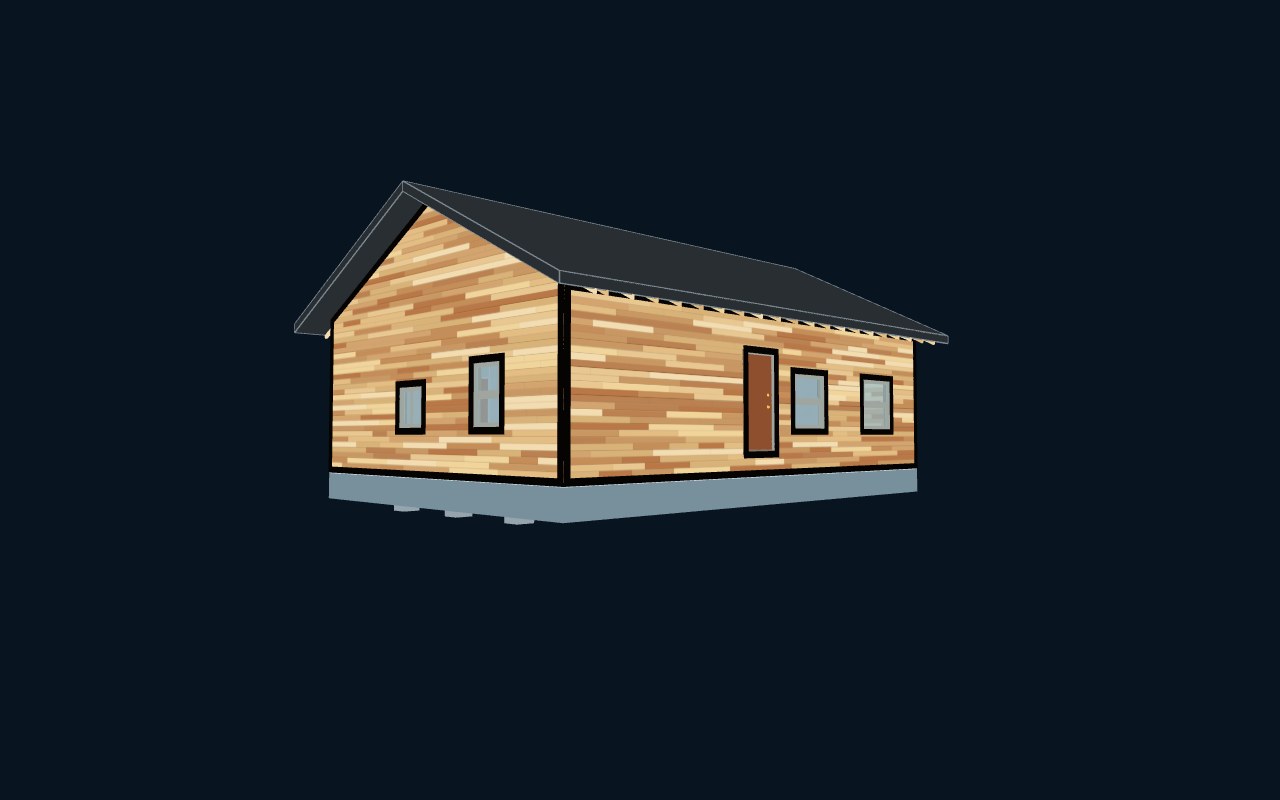

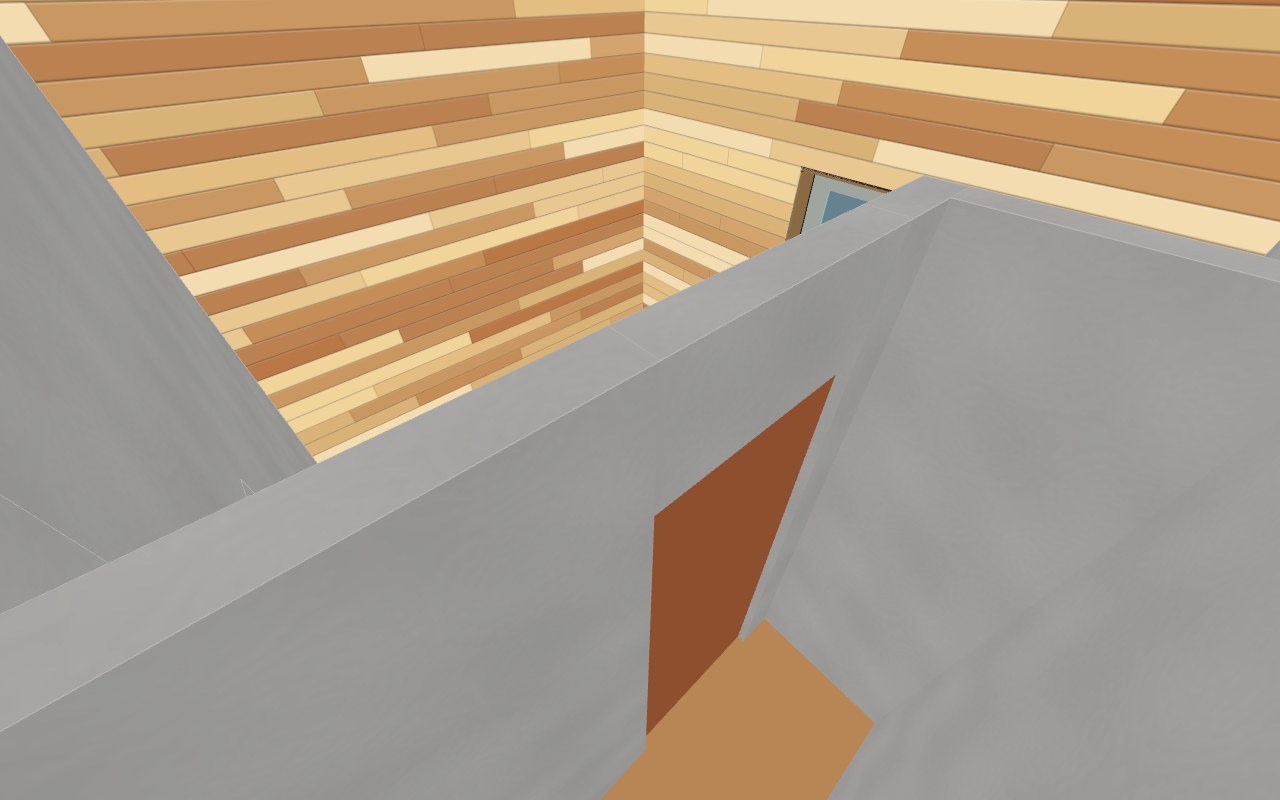

Six exterior views plus one elevated wide-angle corner view for every room in the generated floor plan.

Paper Space PDF

Building Plan Set

Single bundled PDF with elevations, individual elevations, floor plan, foundation plan, roof framing plan, and house statistics.

Suggest A Model Change

Want a different size, layout, roof, window package, or detail? Send Lincoln Block a note about what you would change or add to this model.
