The Daybreak

Lincoln Block Model

Beta model viewer and model package. Verify dimensions, drawings, quantities, pricing, engineering, and local code requirements before building. See the System Plan Notice for more information.

Preliminary design guidance

Lincoln Block System Plan Notice

The Lincoln Block Generator creates a Lincoln Block system plan, not a house blueprint or an engineered construction document.

A system plan is a preliminary mock layout showing what a building plan using the Lincoln Block system might look like if it were later drawn by a qualified designer and reviewed, engineered, and stamped by licensed professionals.

These published models help customers review preliminary layouts, compare design ideas, and communicate what they want before investing in professional drafting, architectural services, structural engineering, permitting, or stamped plans. Do not use this system plan for construction. Dimensions, loads, connections, foundations, code compliance, and site-specific requirements must be verified and documented by the appropriate licensed professionals.

The Daybreak

The Daybreak is a 600 sq ft Lincoln Block house concept with 108 ft of exterior wall, 39 block courses, 791 Lincoln Blocks, a 2.375/12 single slope roof, openings for 2 doors and 8 windows.

Loading model scene…
3D View Controls
Background Color

House Statistics

Full Takeoff Summary

Generated model takeoff organized into expandable sections for quick review on desktop and mobile.

Takeoff HighlightsKey totals from the generated model
Footprint Area600 sq ft
Perimeter108 ft
Courses1-39
Wall Segments8
Generated Blocks807
Takeoff Blocks791
Total Block Length3,358.41 LF
Openings2 door / 8 windows
Brad Nails14,040
Roof Area897.1 sq ft
Foundation0 LF stem wall
Floor Joists0
Wall LayoutFootprint, wall runs, openings, and block length
WallTypeRunLengthOpeningsBlocksBlock LF
Wall 1PlateW36 ft12011,039.38 LF
Wall 2GableS16 ft3124462.79 LF
Wall 3PlateE12 ft189390.75 LF
Wall 4PlateS2 ft03978 LF
Wall 5PlateE12 ft298418.75 LF
Wall 6PlateN2 ft03978 LF
Wall 7PlateE12 ft193421.63 LF
Wall 8GableN16 ft2108469.12 LF
Material ScheduleFull model-level material quantities
MaterialQuantity
Blocks Counted791 count
Blocks With Glue791 count
Glue Profiles1,642 count
Top Cap Blocks15 count
Top Cap Glue60 count
Blocks With Z Metal12 count
Z Metal12 count
Blocks With Gaskets12 count
Gaskets36 count
Exterior Gaskets12 count
Stem Gaskets12 count
Interior Gaskets12 count
Regular Stems1,852 count
Plate Stems32 count
Joint Stems362 count
Corner Stems16 count
Corner Stem Height190 LF
Wall-End Stems0 count
Wall-End Stem Height0 LF
Bolt Hardware34 count
Total Block Length3,358.41 LF
Brad Nail ScheduleFastener quantities by use group
Fastener GroupQuantity
Block Brad Nails7,536
Regular Stem Brad Nails7,408
Plate Stem Brad Nails128
Joint Stem Brad Nails2,896
Course Fastening Brad Nails3,608
Total Brad Nails14,040
Wall-By-Wall TotalsPer-wall material and fastener quantities
WallBlocksGlueTop CapZ MetalGasketsRegular StemsPlate StemsJoint StemsBoltsBrad NailsBlock LF
Wall 1201430739597916294,9061,039.38 LF
Wall 212424802624964961,878462.79 LF
Wall 38919031320032931,436390.75 LF
Wall 439780133910223678 LF
Wall 59820831323033931,696418.75 LF
Wall 639780133910223678 LF
Wall 79319421322134031,654421.63 LF
Wall 810821602627764361,998469.12 LF
Foundation & Floor SystemStem wall, piers, beams, joists, and floor layers
Foundation / Floor ItemValue
Foundation TypeSlab On Grade
Floor SystemSlab Flooring Only
Floor Level Course1
Stem Wall10 in wide x 24 in high
Stem Wall Runs0 runs / 0 LF
Site Grade /
Sill Plate9.50 in wide / 108 LF
Plate Gasket108 LF
Pier Grid0 piers @ 8 ft
Floor Beams0 beams @ 8 ft
Floor Joists0 joists @ 16 in spacing
Floor Layers1 layers
Roof SystemRoof pitch, area, overhang, stack, and roof planes
Roof ItemValue
Roof ModeSingle Slope
ConstructionRafters
Pitch2.38/12
Roof Area897.1 sq ft
Eave Overhang2 ft
Roof Stack Height6 in
Total Roof Thickness11.40 in
Seat Cut Height1.88 in
Rafter Depth5.50 in
Generated Roof Components20
Wall 1 Plane897.1 sq ft
OpeningsDoor and window placements used in the takeoff
WallOpeningStartWidthCoursesComponent
Wall 1Slider Window13.04 ft96 in21-27Lb Window 1
Wall 2Hung Window6.50 ft36 in8-20Lb Window 2
Wall 2Hung Window10.83 ft36 in8-20Lb Window 2
Wall 2Hung Window2.17 ft36 in8-20Lb Window 2
Wall 3Regular Door3.96 ft42 in4-23Lb Door 2
Wall 5Hung Window7.92 ft24 in12-20Lb Window 2
Wall 5Hung Window1.58 ft36 in8-20Lb Window 2
Wall 7Hung Window4.75 ft36 in8-20Lb Window 2
Wall 8Regular Door11.54 ft39 in4-23Lb Door 2
Wall 8Slider Window2.17 ft85 in24-30Lb Window 1
Takeoff OptionsModel features included in this generated takeoff
Generated Takeoff OptionIncluded
Rough Opening StemsYes
Rough Opening PlywoodYes
Top CapYes
Brad NailsYes
Bolt HardwareYes
Joint StemsYes
Regular StemsYes
Plate StemsYes
Corner StemsYes
Wall-End StemsYes
Exterior StileYes
Interior StileYes
GlueYes
GasketsYes
Z MetalYes

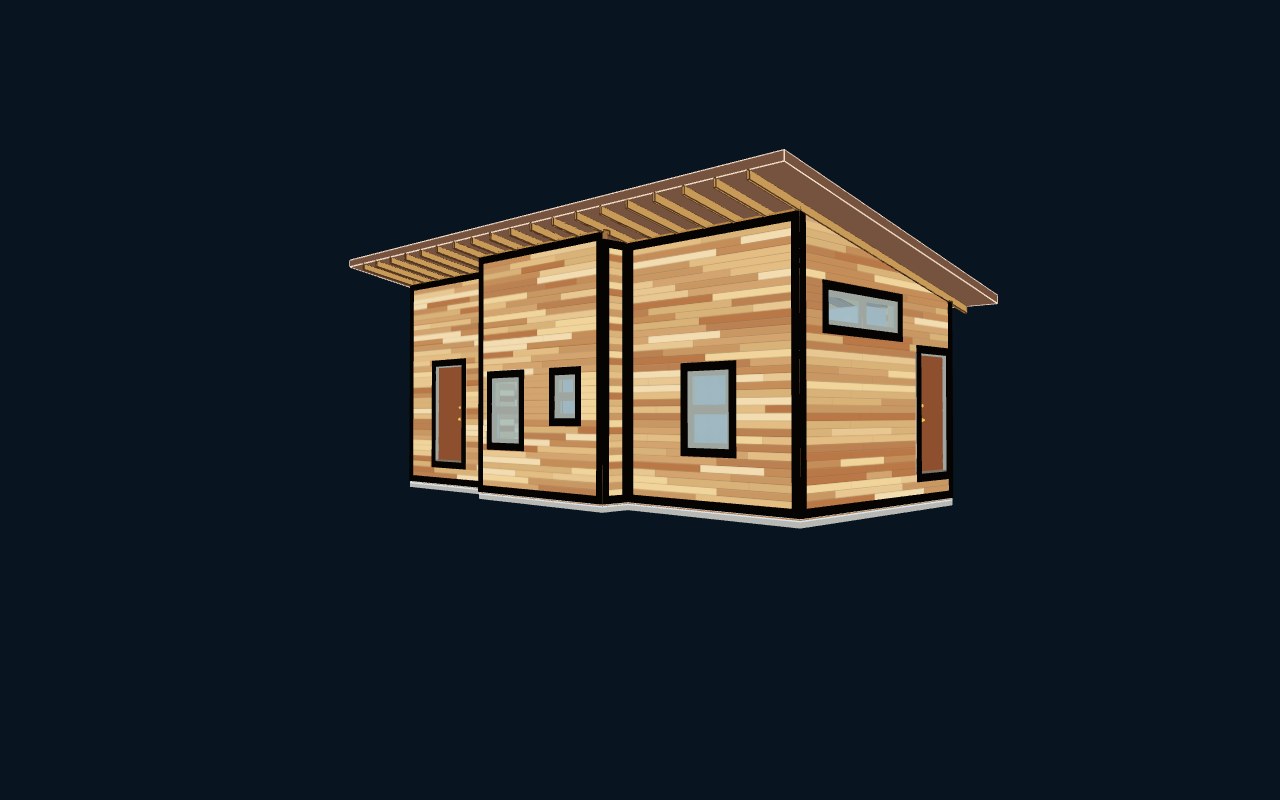

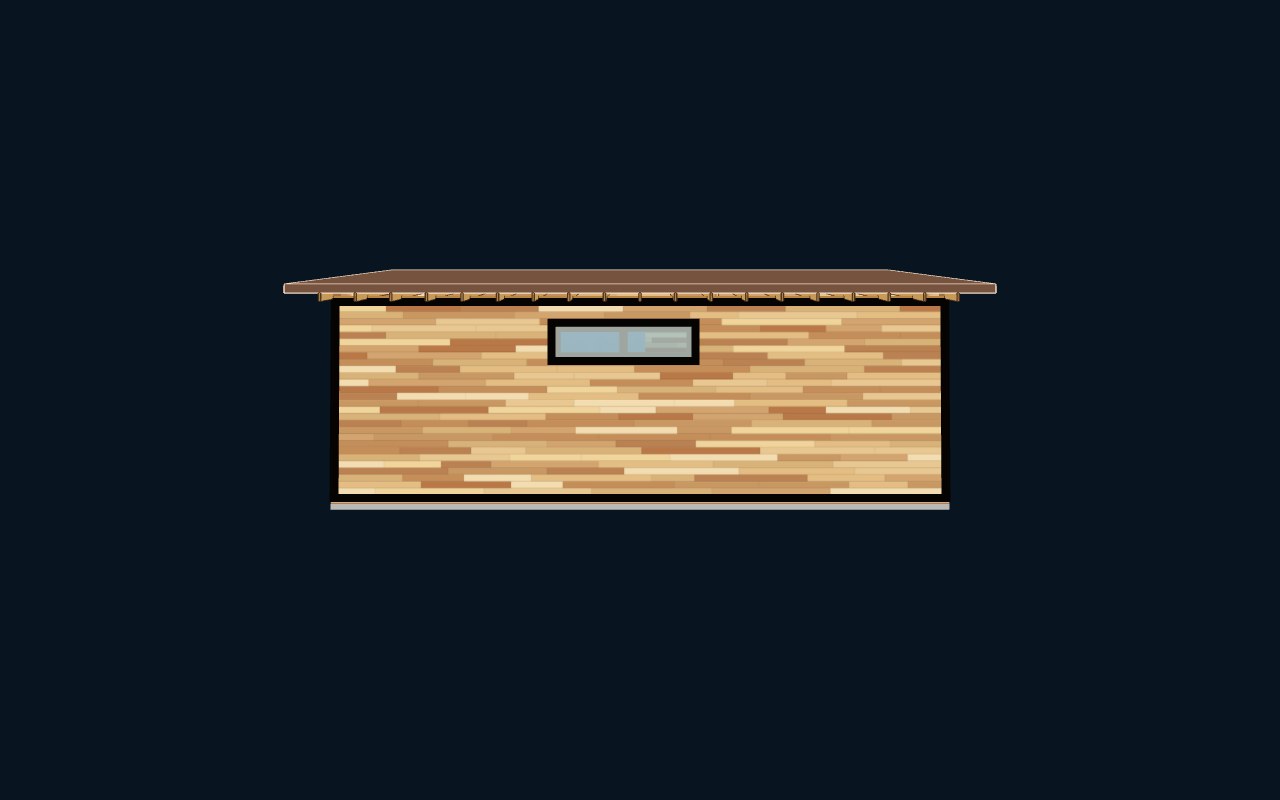

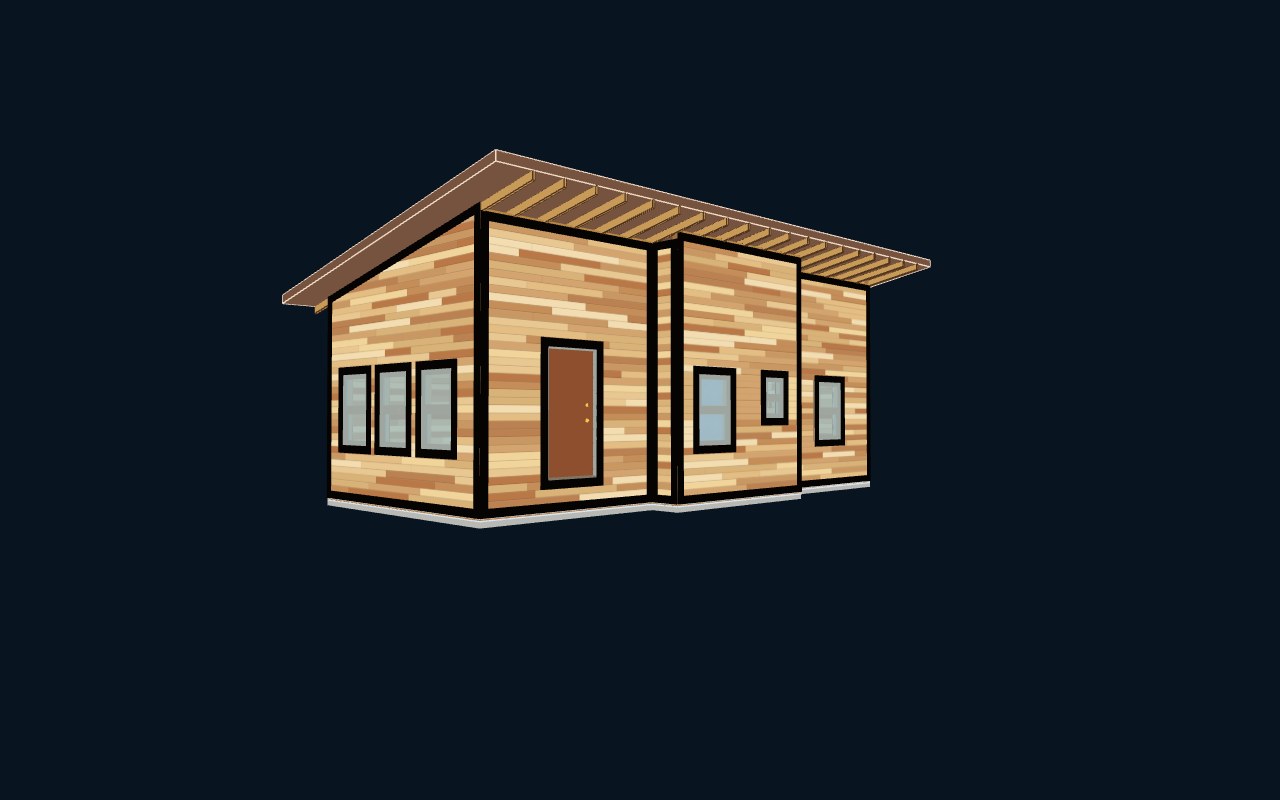

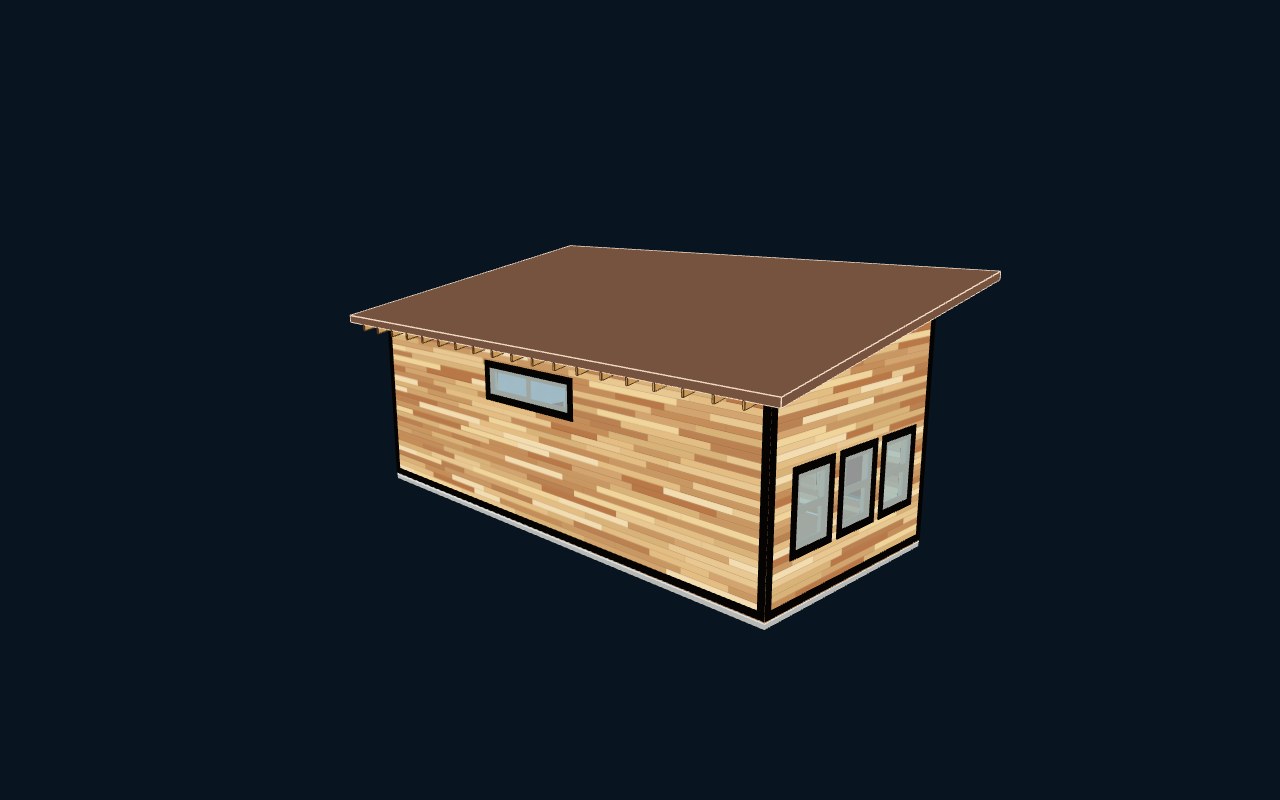

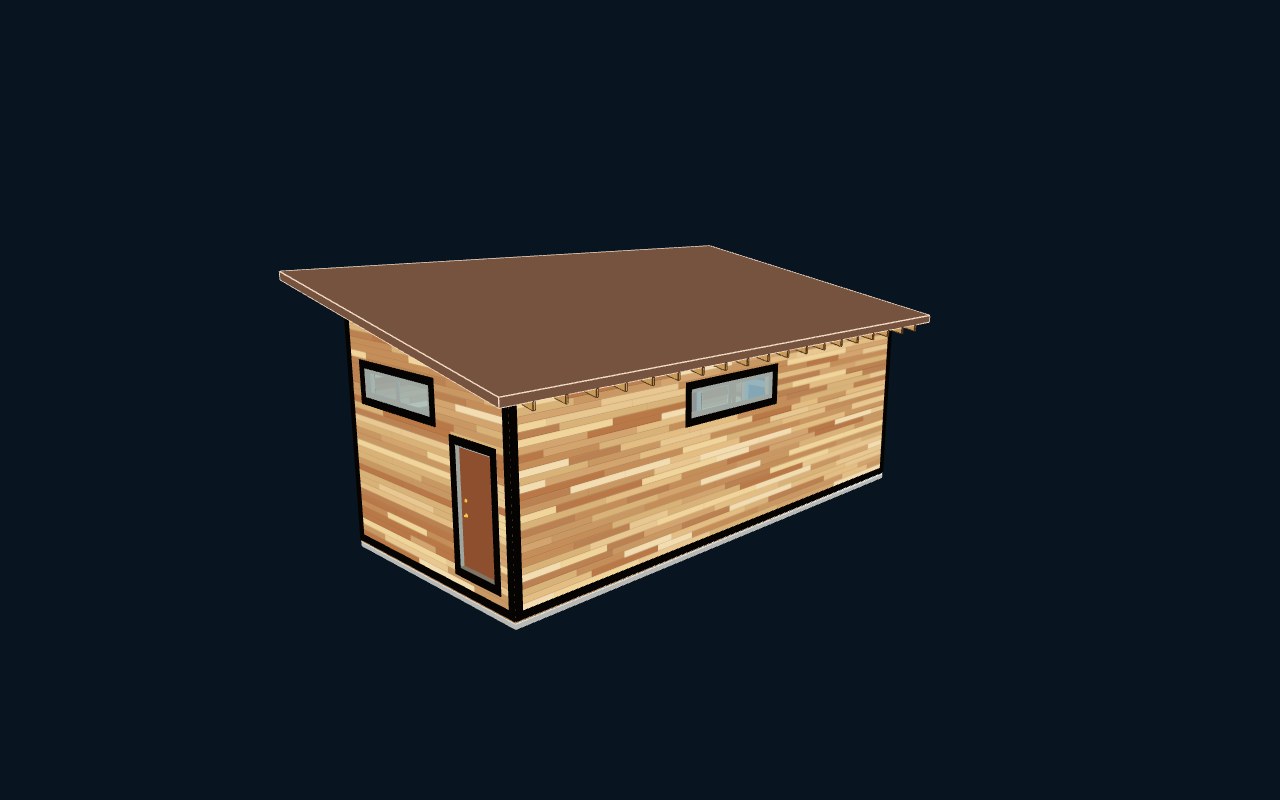

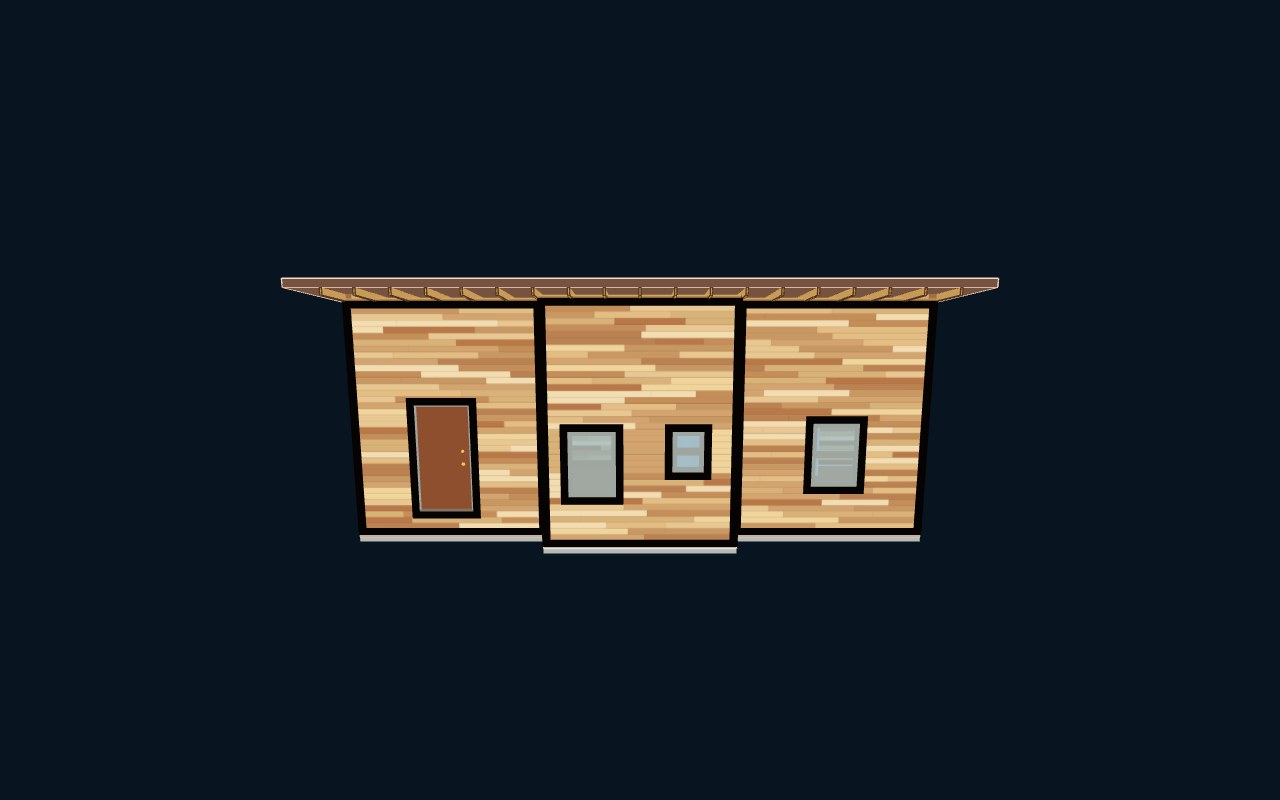

Exterior Views

Photographs

6 reviewed exterior views of this model.

Custom Plans PDF

Building Plan Set

5-sheet custom Plans workbench PDF using the reviewed sheet selection.

Suggest A Model Change

Want a different size, layout, roof, window package, or detail? Send Lincoln Block a note about what you would change or add to this model.
